IEC Terminal Boxes made of Die-Cast Aluminum
| IEC Terminal Boxes made of Die-Cast Aluminum
We supply Aluminum Terminal Boxes of IEC sizes 56 to 180 corresponding to protection classes IP44 to IP65. These parts are available unmachined from stock. Suitable rubber seals are available for all Terminal Boxes. |
|
Frame sizes 56 – 132 / Protection code IP55
 |
| Finished Dimensions | ||||||||||
| Frame sizes | A | B | C | D | E | F | G | H | I | L |
| 56 – 71 | 60 | 74.5 | 62 | 71 | 33.5 | 32.5 | 14.5 | 25 | M16 | 4.5 |
| 80 – 112 | 73 | 92 | 75 | 86.5 | 39.5 | 37.5 | 17.5 | 32 | M20 | 5.5 |
| 132 | 82 | 105 | 88 | 100 | 46 | 44 | 17 | 39 | M25 | 5.5 |
| Frame sizes | Article – No. |
| 56 – 71 | AK-051-055-M16 |
| 80 – 112 | AK-082-055-M20 |
| 132 | AK-132-055-M25 |

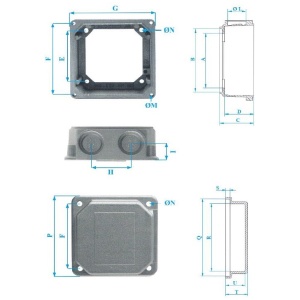

Frame sizes 56 – 200 / Protection code IP56
 |
| IEC | A | B | C | D | E | F | G | H | I | L | M | N | P | Q | R | S | T | U | Article – No. |
| 56-71 | 62 | 71.5 | 35 | 30 | 60 | 85 | 95 | 27 | 16 | 2x M20 |
M4 3,2 | 5 | 100 | 97.5 | 87 | 4 | 11 | 8 | AK-051-065-B220-2 |
| 80-112 | 75 | 86.5 | 44 | 39 | 73 | 99 | 105 | 39 | 20 | 2x M25 |
M5 4,2 | 6 | 114 | 111 | 100 | 4 | 14 | 12 | AK-082-065-B225-2 |
| 132 | 88 | 100 | 47 | 41 | 82 | 100 | 118 | 49 | 24 | 2x M32 |
M5 4,2 | 6 | 124 | 120 | 106 | 3 | 20 | 18 | AK-132-065-B232-2 |
| 160-200 | 130 | 146 | 60 | 53 | 125 | 162 | 180 | 56 | 28 | 2x M32 |
M6 5,2 | 10 | 186 | 183 | 166 | 3 | 26 | 23 | AK-160-065-B232-2 |

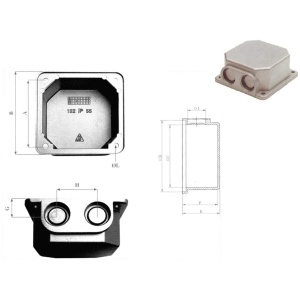

Frame sizes 56 – 132 / Protection code IP65
 |
| IEC | A | B | C | D | E | F | G | H | I | L | M | N | P | Q | R | S | T | U | V |
| 56-71 | 71 | 74 | 33,5 | 29 | 31,5 | 123 | 79 | 60 | 132 | 95 | 4,2 | 4 | 17 | 28,5 | M 20 | M 20 | 136 | 92 | 8,5 |
| 80-112 | 87 | 92 | 39 | 34,5 | 36,5 | 138,5 | 94 | 73 | 148 | 111 | 5,4 | 5 | 17 | 32 | M 20 | M 20 | 153 | 109 | 8,5 |
| 132 | 90 | 106 | 54 | 48,5 | 51,5 | 188 | 114 | 82 | 200 | 130 | 6,5 | 5,5 | 24,5 | 46 | M 132 | M 132 | 206 | 132 | 9,5 |

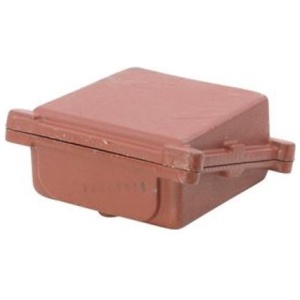

IEC Terminal Boxes made from Gray Cast Iron
| These Gray Cast Iron Terminal Boxes are available in IEC sizes 80 to 400 in accordance with protection classes IP 54 and IP 65 |  |
Frame sizes 80 – 112 / Protection code IP54
|
|
| Article – No. | ||
| Frame size | Terminal Box | Terminal Box Cover |
| 80 -112 | GK-082-054-000 | GKD-082-054-000 |
Frame sizes 132 – 400 / Protection code IP54
 |
| Finished Dimensions | ||||||||
| Frame sizes | a | b | c | d | e | f | g | A |
| 132 – 180 | 160 | 59 | 128 | M6 | 7 | 144 | 104 | 169 |
| 200 – 250 | 215 | 82 | 184 | M8 | 9 | 195 | 148 | 224 |
| 280 | 245 | 78 | 204 | M8 | 9 | 227 | 183 | 252 |
| 315 | 274/294 | 105 | 250 | M8 | 10.5 | 254/274 | 206 | 283/303 |
| 355 | 350 | 125 | 320 (308) | M10 | 11.5 | 324 | 274 | 365 |
| 400 | 440 | 154 | 372.5 | 8xM8 | 10 | 420 | 320 | 445 |
| Article – No. | ||
| Frame sizes | Terminal Box | Termonal Box Cover |
| 132 – 180 | GK-138-054-000 | GKD138-054-000 |
| 200 – 250 | GK-205-054-000 | GKD205-054-000 |
| 280 | GK-280-054-000 | GKD280-054-000 |
| 315 | GK-315-054-000 | GKD315-054-000 |
| 355 | GK-355-054-000 | GKD355-054-000 |
| 400 | GK-400-054-00 | GKD400-054-000 |
Frame size 250 / Protection code IP65
|
|
| Article – No. | |
| Terminal Box | Terminal Box Cover |
| GK-250-065-000 | GKD250-065-000 |
IEC Plastic Terminal Boxes
| IEC Plastic Terminal Boxes
Plastic Terminal Boxes are available in IEC sizes 56 to 112 in accordance with protection class IP 65. We will be happy to provide a data sheet and further information on request. |
 |
 |
| Frame sizes | A | B | C | D | E | 1 | 2 | Article – No. |
| 56 – 71 | 71 | 71 | 60 | 60 | 32 | M20 x 1,5 | M20 x 1,5 | PK-052-0651M20 |
| 80 – 112 | 86 | 86 | 73 | 73 | 37 | M20 x 1,5 | M20 x 1,5 | PK-082-0651M25 |
