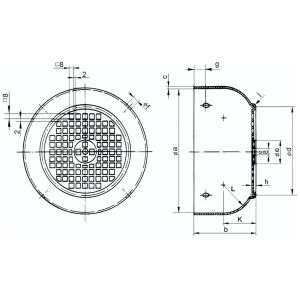

| Art. no. | Size | ∅ a | b | ∅ c | ∅ d | ∅ e | g | k | L | |
| LHM056 | * | 56 | 108,5 | 53,5 | 1,0 | 78 | 14 | 10 | 29 | 28 |
| LHM063 | * | 63 | 121 | 61 | 1,0 | 85 | 17 | 14 | 32 | 31 |
| LHM071 | * | 71 | 136 | 70,5 | 1,0 | 95 | 18 | 10 | 35,5 | 35 |
| LHM080 | * | 80 | 154 | 75 | 1,0 | 112 | 25 | 14 | 39,5 | 40 |
| LHM090 | * | 90 | 174 | 86 | 1,0 | 125 | 30 | 16 | 45 | 46,5 |
| LHM100 | * | 100 | 192 | 95 | 1,0 | 133 | 34 | 18 | 49,3 | 47,7 |
| LHM112 | * | 112 | 216 | 99 | 1,0 | 152 | 34 | 16 | 54 | 55 |
| LHM132 | * | 132 | 255 | 117 | 1,5 | 173 | 42 | 23 | 64 | 64 |
| LHM160 | * | 160 | 307 | 136 | 1,5 | 205 | 46 | 25 | 69,5 | 65 |
| LHM180 | * | 180 | 345 | 155 | 1,5 | 218 | 52 | 35 | 71 | 65 |
| LHM200 | * | 200 | 382 | 178 | 1,5 | 250 | 69 | 38 | 72 | 66 |
| LHM225 | * | 225 | 430 | 192 | 1,5 | 263 | 69 | 42 | 96 | 90 |
| LHM250 | * | 250 | 477 | 220 | 1,5 | 297 | 85 | 46 | 95 | 190 |
| LHM280 | * | 280 | 533 | 239 | 1,5 | 320 | 95 | 50 | 113 | 108 |
| LHM315 | * | 315 | 597 | 257 | 1,5 | 340 | 100 | 50 | 135 | 130 |
| LHM355 (1) | * | 355 | 692 | 240 | 1,75 | 400 | 125 | – | 128 | 128 |
For motors with a second shaft end, the recess “e” can be broken out.
* on request
(1) Raw sheet steel, unprimed, without side perforations
